Description
Product Information

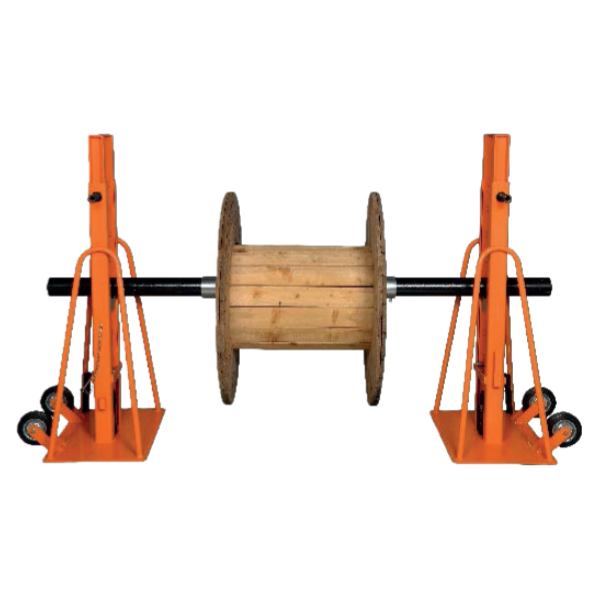

HYDRAULIC CABLE DRUM LIFTER
Lifting system - column Base preventing sinking into the ground Construction protected against corrosion Axle - solid shaft Bearing supports rotating the axle Included: 2 bases, axle, disc limiters, bearing supports, hydraulic cylinders
Product Specifications
Model | Drum height | Axis length | Axis diameter ø | Max drum weight | Libra | Dimension |
TB-K500/2 | 500-1600 mm | 1500 mm | 48 mm | 2 000 kg | 100 kg | 1010x590x400 mm |
TB-K500/3 | 500-2200 mm | 1800 mm | 60 mm | 3 000 kg | 110 kg | 1010x590x400 mm |
TB-K500/5 | 800-2500 mm | 2000 mm | 70 mm | 5 000 kg | 160 kg | 1650x500x400 mm |
TB-K500/8 | 800-2800 mm | 2000 mm | 90 mm | 8 000 kg | 176 kg | 1650x500x400 mm |
