Description
Product Information

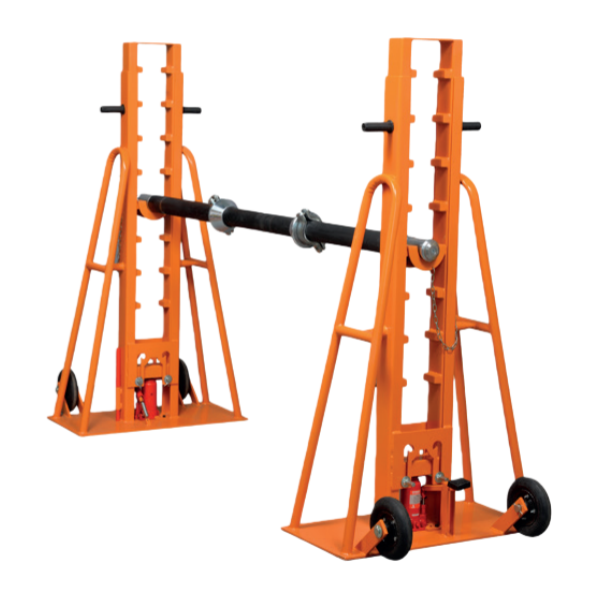

HYDRAULIC CABLE DRUM LIFTER
Lifting system - column Base preventing sinking into the ground Construction protected against corrosion Axle - solid shaft terminated with rotating bearing ends Included: 2 bases, axle, cones preventing the drum from sliding, hydraulic cylinders.
Product Specifications
Model | Drum Height | Axis Length | Axis Diameter | Max Drum Weight | Waga | Dimension |
TB-K700/5 | 900-3200 mm | 2000 mm | 70 mm | 5000 kg | 200 kg | 1760x800x530 mm |
TB-K700/10 | 900-3600 mm | 2400 mm | 90 mm | 10000 kg | 330 kg | 2100x900x630 mm |
TB-K700/15 | 1200-3800 mm | 2400 mm | 100 mm | 15000 kg | 430 kg | 2300x1000x690 mm |
