Description
Product Information

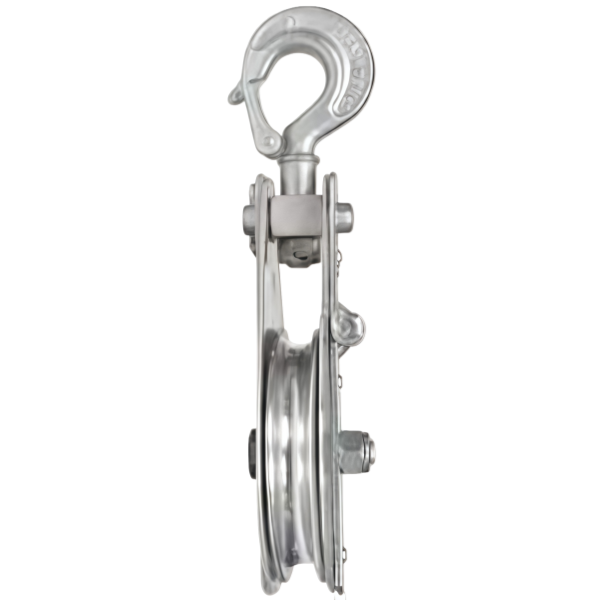

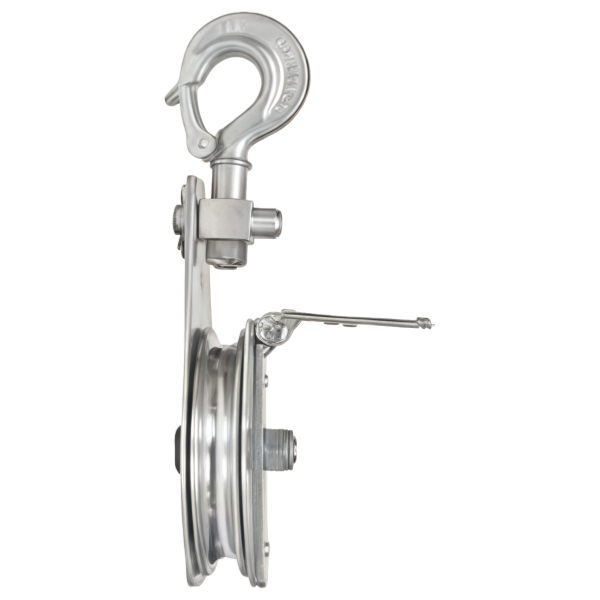

Model 020 AL Aluminium roller
With hinged side-opening system , ball-bearing mounted aluminium roller, aluminium alloy frame, swivel hook model G1 (standard delivery) with safety lock.
Product Specifications

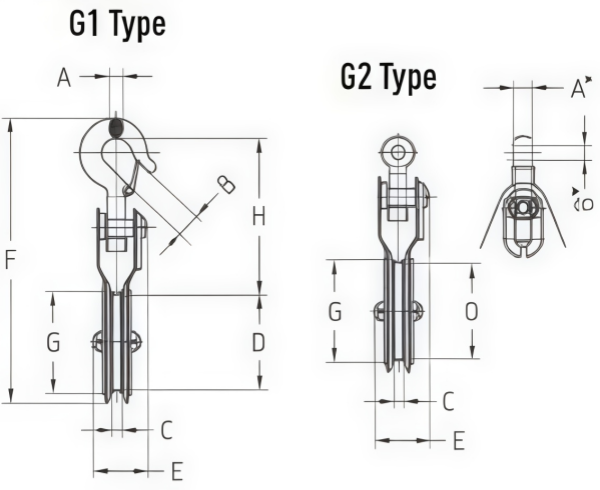

Symbol | A | B | C | D | E | F | Working Load kN | Breaking Load kN | Weight (KG) |
TB-17106 | 108 | 40 | 15 | 20 | 17 | 28 | 60 | 180 | 16 |
TB-17112 | 138 | 40 | 15 | 27 | 21 | 32 | 120 | 360 | 28 |
