Description
Product Information

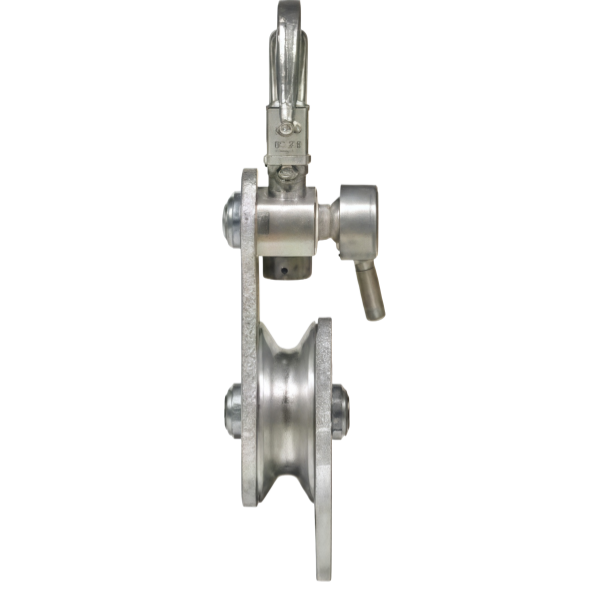

Model 020/L Aluminium roller
With side frame opening system, ball-bearing mounted aluminium pulley

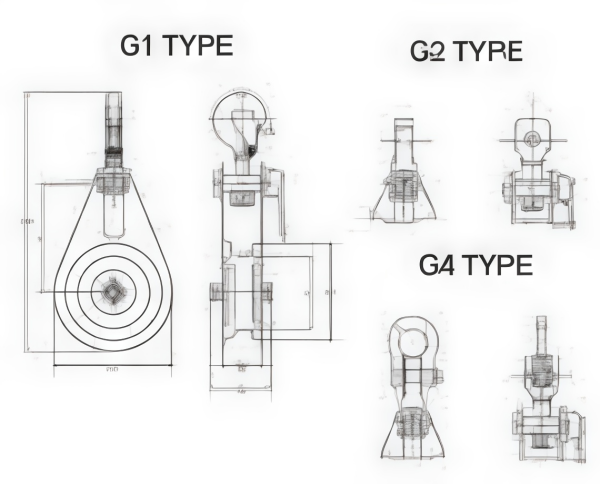

Aluminium frame with swivel G1 fixing hook (standard design).
*Pivot clamp type "G2" "G4" on request. Technical drawing as above
Product Specifications
Symbol | A | B | C | D | E | F | Working load kN | Breaking load kN | Weight (KG) |
TB-020/L/015/LL | 80 | 46 | 130 | 300 | 130 | 84 | 30 | 150 | 17 |
TB-020/L/045/LL | 90 | 50 | 130 | 310 | 130 | 84 | 90 | 450 | 24 |
TB-020/L/090/LL | 100 | 54 | 130 | 340 | 130 | 84 | 180 | 900 | 35 |
TB-020/L/150/LL | 110 | 70 | 160 | 460 | 165 | 110 | 300 | 1,500 | 55 |
