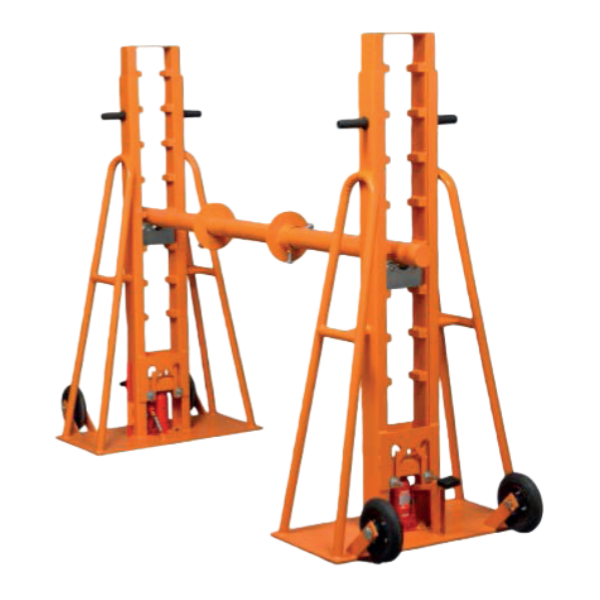

HYDRAULIC CABLE DRUM LIFTER
Lifting system - column Base preventing sinking into the ground Construction protected against corrosion Axle - solid shaft Bearing supports rotating the axle Included: 2 bases, axle, disc limiters, bearing supports, hydraulic cylinders.
Product Specifications
Model | Drum Height | Axle Length | Axle Diameter ø | Max Drum Weight | Libra | Dimension |
TB-K600/5 | 900-3200 mm | 2000 mm | 70 mm | 5 000 kg | 220 kg | 1760x800x530 mm |
TB-K600/10 | 900-3600 mm | 2400 mm | 90 mm | 10 000 kg | 320 kg | 2100x900x630 mm |
TB-K600/15 | 1200-3800 mm | 2400 mm | 100 mm | 15 000 kg | 370 kg | 2300x1000x690 mm |
